Are weld leaks and structural cracking frequent? High-quality welded parts extend the service life of transformer oil tank shells and construction machinery

The power transmission and distribution equipment and large-scale construction machinery are constantly exposed to heavy loads, vibrations, high and low temperatures, outdoor wind and sand corrosion conditions. The main structural components and sealed boxes of the equipment are all formed by welding parts. The quality of the welding process directly determines the safety of the entire machine and its maintenance cycle. Among them, the transformer oil tank shell and the welding assembly of the construction machinery frame and boom are two core essential welding parts: the transformer oil tank shell has zero tolerance for weld seam sealing performance. Once there are welding flaws, there will be oil leakage and insulation failure; the welding parts of the construction machinery continuously bear alternating impact loads, and poor weld seams are prone to tearing and breaking, causing equipment shutdown or even safety accidents. Commonly, the manual welding parts on the market generally have problems such as uneven weld seams, pores and slag inclusions, poor sealing, and insufficient strength. Professional automated welding parts are controlled throughout the process from raw materials, welding techniques, and flaw detection, and are suitable for the power transformer and engineering lifting machinery industries. They are the long-term stable purchasing choices of the main manufacturers and foreign trade component suppliers.

I. Two mainstream industrial welding parts application scenarios: transformer oil tank shell & construction machinery welding parts

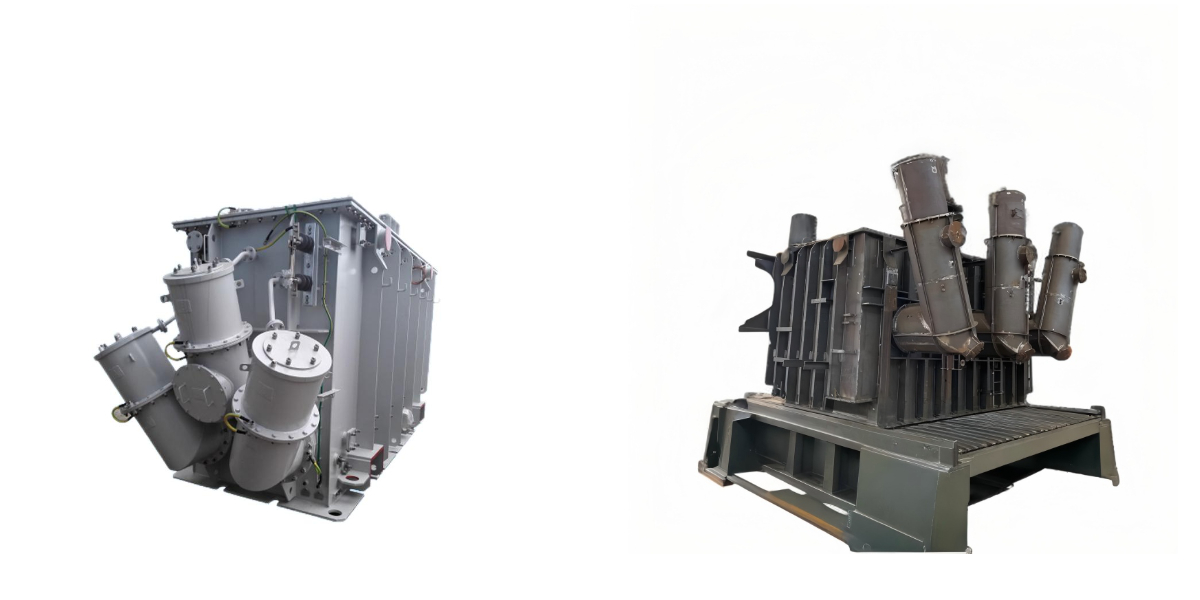

1. Sealing welding parts: Transformer oil tank shell (core shell of power equipment)

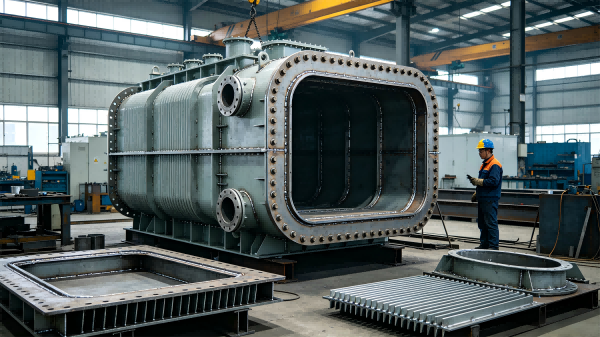

The oil tank shell of the oil-immersed transformer is formed by welding a whole piece of steel plate, and it contains insulating transformer oil, bearing three core functions of heat dissipation, sealing, and protection. The ordinary simple welding process is prone to produce fine pinholes and weld seam gaps, resulting in oil leakage and oil loss problems over a long period of operation, polluting surrounding equipment and shortening the service life of the transformer. Our factory's automated submerged arc welding process integrates the bottom, walls, edges, and heat dissipation corrugated plates for continuous welding. The weld seams are full and without breaks, and all are tested for water pressure leakage after completion, completely eliminating the risk of oil leakage. It is suitable for welding processing of transformer oil tank shells of all specifications from 10kV to 1100kV, and can customize thickened plates and strengthened weld structures to withstand salt and alkali, high and low temperature outdoor conditions, and comply with the export standards of the State Grid.

2. Heavy-duty welding parts: Various load-bearing structural components of construction machinery

The frame, support assembly, connection ear seat, and chassis bracket of construction machinery such as crawler cranes, truck cranes, excavators, and rail engineering vehicles are all welding parts. During operation, they repeatedly bear lifting impact, torsion, and jolting loads. Poorly welded parts have thin weld seams and shallow fusion depth, and cracks and deformations occur under long-term alternating stress; we adopt carbon dioxide gas protection welding + robot automatic welding, with multi-layer multi-pass welding technology for thick plates, ensuring adequate weld depth and significantly improving the tensile strength of the weld seam. After welding, all undergo ultrasonic flaw detection to check for internal welding defects, suitable for high-intensity operation scenarios such as mining, infrastructure construction, and wind power installation, significantly reducing the frequency of component replacement.

II. Four core advantages of professional welding parts compared to ordinary manual welding parts

1. Full sealing, no leakage risks (exclusive advantage of transformer oil tank shell) The fully automatic continuous welding process forms uniform and dense weld seams without pores, sand holes, or incomplete welding. After the transformer oil tank shell is welded, a pressure retention leakage test is conducted to fully meet the sealing standards of power equipment, solving the leakage problem at its source.

2. High strength, fatigue-resistant, suitable for heavy-duty impact of construction machinery The robot precisely controls the welding current and gun speed, with sufficient fusion depth, strong metal bonding force, and the welding area is less likely to crack or deform under long-term alternating stress. It is stable and reliable during repeated lifting, walking operations, and extends the service life of the construction machinery as a whole.

3. Full process quality control, traceable quality Each batch of welding parts comes with a complete test report, meeting the quality inspection requirements of overseas and domestic main manufacturers.

4. Flexible customization, covering multi-industry batch demands Supports customizing various irregular welding parts based on drawings or samples, small-batch prototyping, and large-batch export in container shipments. It is compatible with both the oil tank shell of power transformers and the structural components of construction machinery. Customers can purchase all these items in one place, reducing the cost of multiple supplier connections.

III. Application Industry Scope

1. Power equipment support: oil-immersed transformer oil tank shells, reactor boxes, sealing welding parts for energy storage equipment;

2. Construction machinery manufacturing: crawler cranes, truck cranes, excavators, track engineering vehicle frames, support seats, arm frame welding assemblies;

3. Export support: batch welding parts orders for power and construction machinery manufacturers at home and abroad, providing anti-rust sandblasting, export wooden box packaging, and full container ocean shipping delivery.

IV. Summary

If you are looking for a source of welding parts processing, need to customize sealed transformer oil tank shells, heavy-duty construction machinery welding structural components, or large-scale purchase of industrial precision welding accessories, please send product drawings, equipment tonnage, annual purchase volume, trade terms, etc. We can provide free sample prototyping, welding process plans and precise quotations, support factory on-site visits, and solve the pain points of power and construction machinery welding parts procurement in one-stop.
