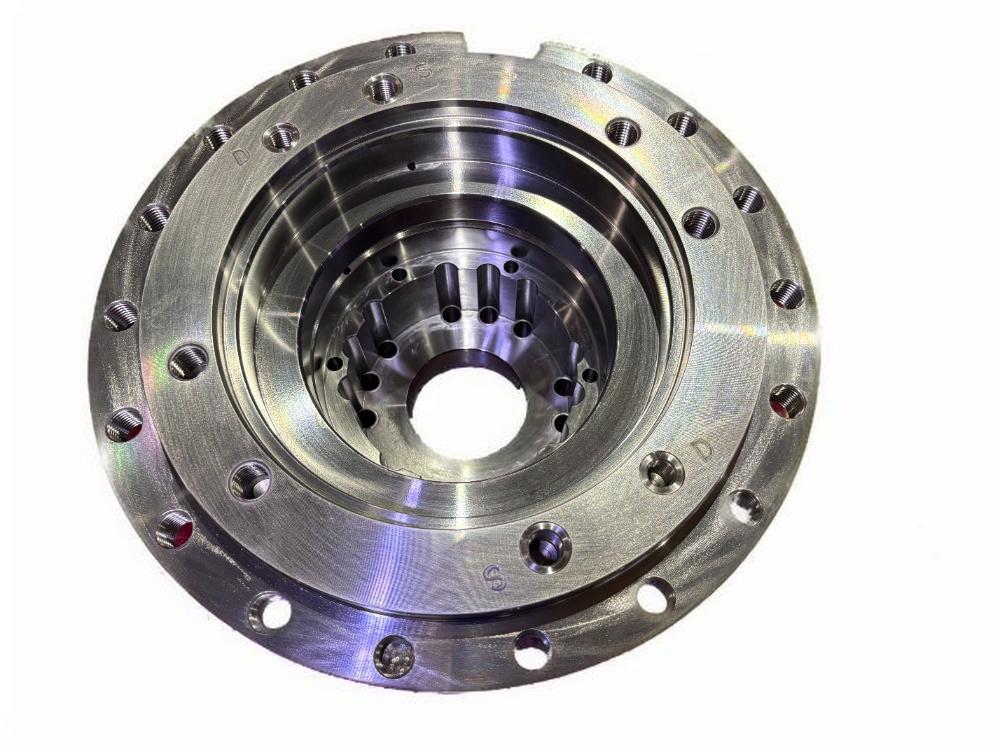

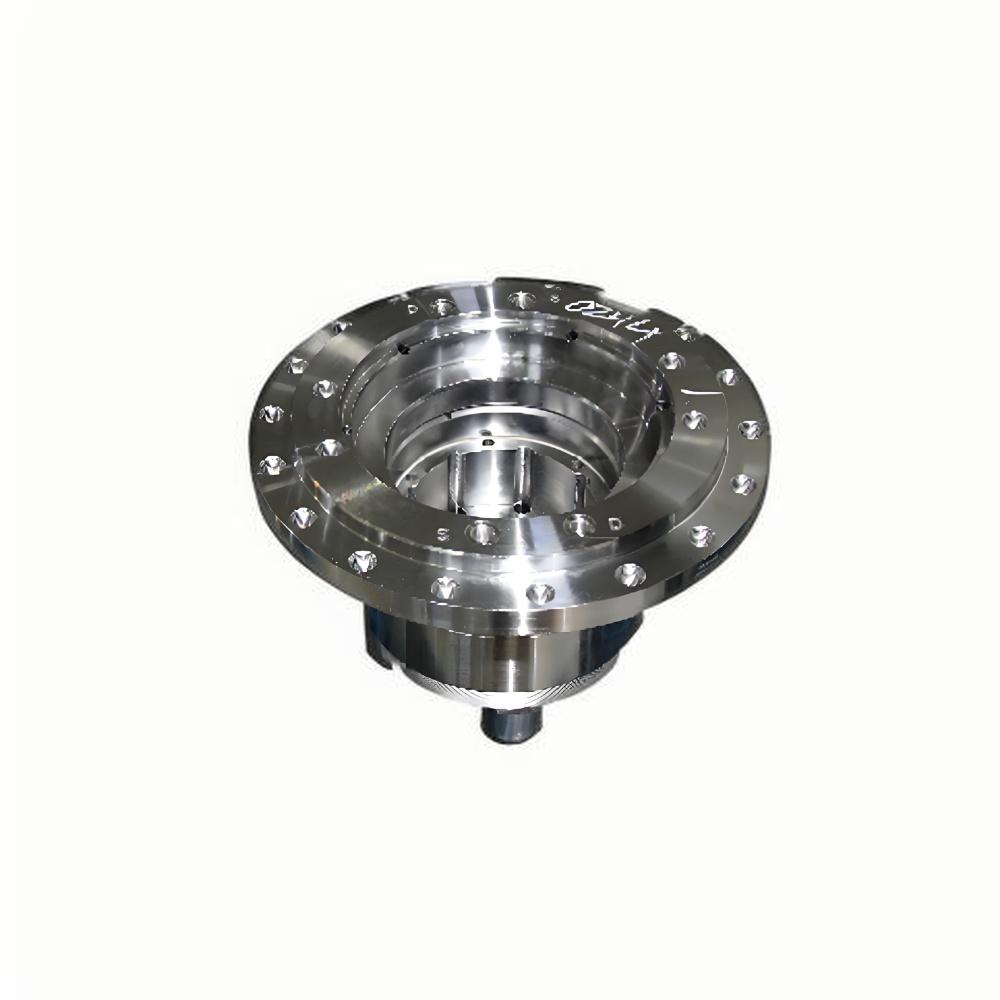

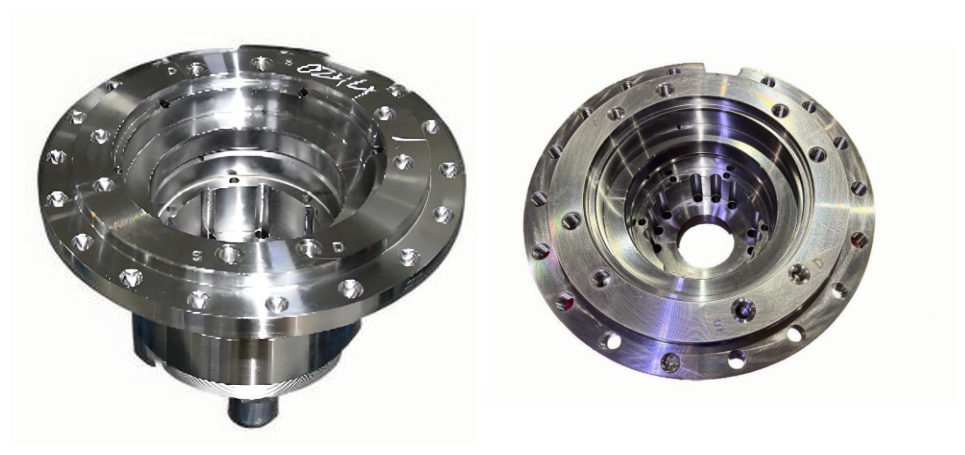

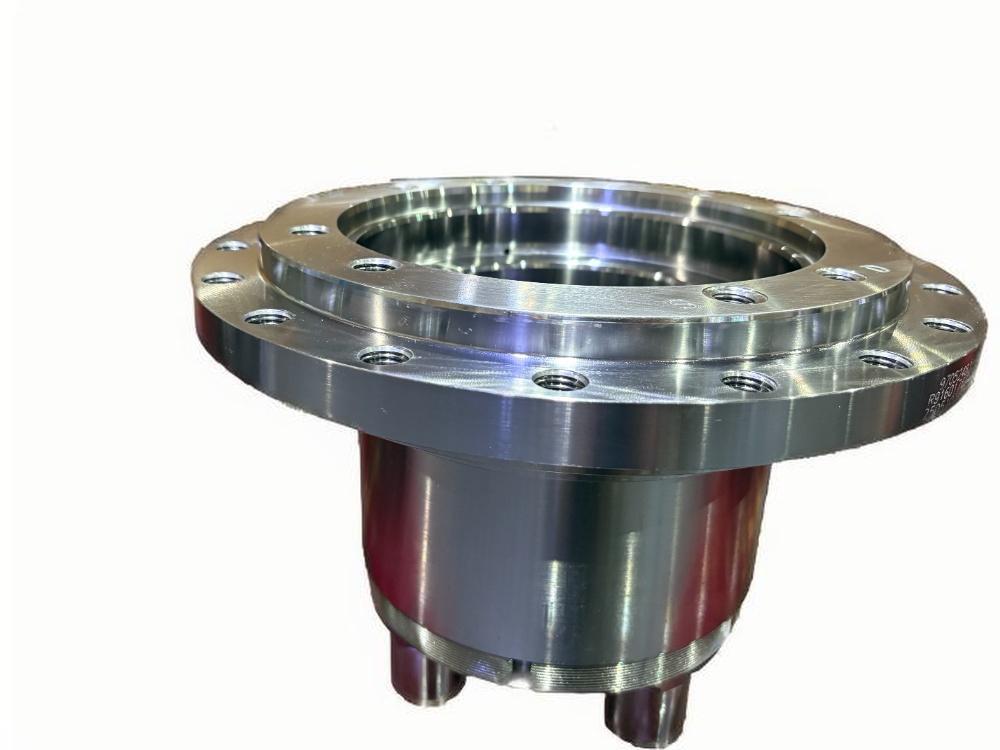

Precision Eengineered Support Shaft

Product Introduction:

Support shafts are integral foundational aspects in mechanical systems, exceptionally used to aid rotating bodies, transmit loads, hold action accuracy, and minimize frictional wear. Their core feature lies in presenting steady mechanical guide for rotating equipment, making sure environment friendly strength transmission and dependable structural operation.As cylindrical mechanical parts, help shafts are generally built-in with bearings, seals, and lubrication structures to structure a entire help unit. Though apparently simple, help shafts serve as the "backbone" of industrial equipment—ranging from micro-shafts in units (e.g., Ø2.3mm) to ship propulsion shafts spanning lots of meters. Their plan persistently revolves round three core demands: load-bearing, pressure transmission, and durability.Looking ahead, with developments in sensible manufacturing and new materials, guide shafts will similarly evolve towards light-weight integration, shrewd perception, and inexperienced regeneration, consistently underpinning industrial innovation.

Product Advantages:

Support shafts, as core factors in mechanical systems, show widespread benefits throughout structural design, fabric performance, useful diversity, and financial efficiency. Based on technical important points and utility cases, their core strengths are systematically analyzed as follows:1. High Load Capacity & Stability:Rigid Support: Through optimized geometric buildings (e.g., stepped designs, strengthened ribs), assist shafts stand up to excessive radial/axial hundreds (e.g., heavy-duty solid metal shafts exceeding 20 kN), making sure steady operation underneath have an effect on or vibration .Dynamic Balancing: In high-speed situations (e.g., wind turbine shafts at 1,500 rpm), dynamic balancing calibration controls vibration with precision up to ±0.02 mm, stopping accuracy loss due to imbalance .2. Compact & Integrated Design Space Efficiency: Integrated aid shafts (e.g., CSB's aluminum shafts) reach lengths up to 3,000 mm, minimizing auxiliary aid structures. Ideal for space-constrained functions like robotic palms and compact tools .System Simplification: Dual-function information shafts serve as structural pillars, putting off extra helps and decreasing installation complexity and prices .3. Future Innovation DirectionsWith Industry four advancements, aid shafts will evolve toward:Composite Materials: Carbon fiber-reinforced shafts decrease weight via 30% whilst bettering fatigue resistance .Intelligent Perception: Embedded sensors (e.g., pressure gauges) allow real-time deformation monitoring .Remanufacturing Repair: Laser cladding technological know-how cuts alternative prices by using 30%, aligning with round economic system dreams .These improvements will continually power high-end tools development .

Production Process:

Raw material inspection→ Cutting→ Forging → Normalizing → Rough turning → UT → Quenched and tempered → Shot peening → MT → Finished turning → Drilling and Tapping → Shaping → CMM/GMM → Cleaning packaging

Our team will:

Clean, label, and take a appear at rust-proofing to all merchandise in the previous than shipment;
Perform a meticulous show off up inspection;
Finally pack the merchandise and retain them in our warehouse, making tremendous readiness for dispatch

Company Strength:

Over the previous 30 years of energetic development, the corporation has aggressively extended into each and every and every and each and every home and world markets. Its merchandise are considerably used in fields such as setting up machinery, wind electrical strength generation, new electrical electricity vehicles, rail transit, petrochemicals, and mining machinery. The organization has mounted in-depth cooperation with world-renowned agencies in the United States, Canada, Germany, Italy, Belgium, Japan, and fantastic countries, with far-off areas capital patron income accounting for improved than 50%. It has in addition universal strategic partnerships with home predominant high-end tools producers such as Zoomlion, XCMG, Sany, Lingsheng, CRRC, Nanjing Gear, and Zhuzhou Gear. Among its products, the market share of planetary reducer core forgings and medium-to-large lifting hook assemblies ranks first in the home market.
