What is the difference between a coupler and a coupling?
What is the difference between a coupler and a coupling?
In the field of mechanical transmission and transportation equipment, "coupler" and "coupling" are often confused, but there are significant differences between the two in terms of function, application scenarios and structure. Especially in the railway industry, railway coupling and coupler in railway are key components that support the safe operation of trains. Clarifying the differences between the two is of vital importance for equipment maintenance, selection and industry communication. This article will comprehensively analyze the differences between coupler and coupling from the dimensions of definition essence, exclusive characteristics of the railway field, and type classification, and at the same time deeply sort out the core knowledge of related components in the railway field.
I. Defining the Essence: The Core Difference between coupler and coupling
From the perspective of term definition, "coupler" refers to a device used to connect two independent components (especially separable components), with an emphasis on "quick connection and separation", and is commonly seen in scenarios where frequent disassembly and assembly or flexible combination are required. "coupling", on the other hand, is a device used to connect two shafts or two rotating components. Its core function is to "transmit torque and compensate for deviation", and it is typically employed in fixed transmission systems to ensure stable power transmission.
In the railway field, this difference is particularly obvious: The railroad car coupler, as a typical coupler, is mainly used to connect different carriages of the train, facilitating the formation and disassembly of carriages. Train dispatchers can achieve rapid assembly or disassembly of carriages by operating the coupler. railway coupling, on the other hand, falls within the category of coupling. It is often installed between the engine and the transmission system of a locomotive or between the drive shaft and the wheel set of a train. It is responsible for transmitting the torque generated by the engine to the wheel axles, while buffering the vibration and displacement deviation during operation to ensure the smoothness of power transmission. Simply put, coupler in railway addresses the issue of "carriage connection", while railway coupling addresses the problem of "power transmission".
Ii. Specialized for the Railway Field: Application Characteristics of coupler and coupling
The extremely high requirements for safety and stability in the railway industry have led to the formation of exclusive application characteristics for railway coupling and coupler in railway, and these characteristics further highlight the differences between the two.
For coupler in railway, its core features include "self-locking function", "buffering performance" and "standardized design". For example, the common Janney coupler is a typical railroad car coupler. It can automatically complete the connection and lock when the carriages collide, avoiding decoupling during operation. Meanwhile, the built-in buffer device of the coupler can absorb the impact force when the train starts and brakes, protecting the structure of the carriages and the goods inside. While railway coupling pays more attention to "torque carrying capacity", "deviation compensation capacity" and "high-temperature resistance" - as it is in the core link of power transmission for a long time, the coupling needs to withstand huge torque and at the same time compensate for the radial and axial deviations of the shafting caused by installation errors and temperature changes. Some couplings used in locomotive engines also need to withstand high-temperature environments to ensure stable operation under complex working conditions.
Furthermore, in terms of maintenance and repair, the inspection focus of coupler in railway is on the flexibility of the locking mechanism and the integrity of the buffer device, while for railway coupling, the tightness of the connecting bolts, the sealing performance of the seals, and the wear of the internal bearings need to be inspected with emphasis. The maintenance standards and procedures for the two are completely different.
Iii. Type Classification: Common Classifications of Railway Couplings and Couplings
Whether it is coupler in railway or railway coupling, various types have been derived according to the types of railway vehicles and operational requirements. Understanding these types helps to more accurately understand the differences in application scenarios between the two.
(1) The main types of couplers in railway
Railway coupling types and train coupler types are often associated and mentioned in the coupler classification. Common coupler in railway types include:
Automatic coupler: This is currently the mainstream type of railroad car coupler. It can complete the connection without manual intervention, such as the Jennison coupler mentioned earlier, which is widely used in passenger trains and freight trains.
Semi-automatic couplings: The connection process is completed automatically, but manual operation is required for separation. They are mostly used in dedicated trains with lower requirements for formation flexibility.
Manual couplings: Both connection and disconnection require manual operation. They have a simple structure and are mainly used for shunting operations on small vehicles or old trains.
In addition, the types of coupler in railway can be classified into passenger couplers and freight couplers according to their uses - passenger couplers pay more attention to buffering performance to enhance passenger comfort, while freight couplers emphasize carrying capacity more to meet the demands of heavy-load transportation.
(2) The main types of railway couplings

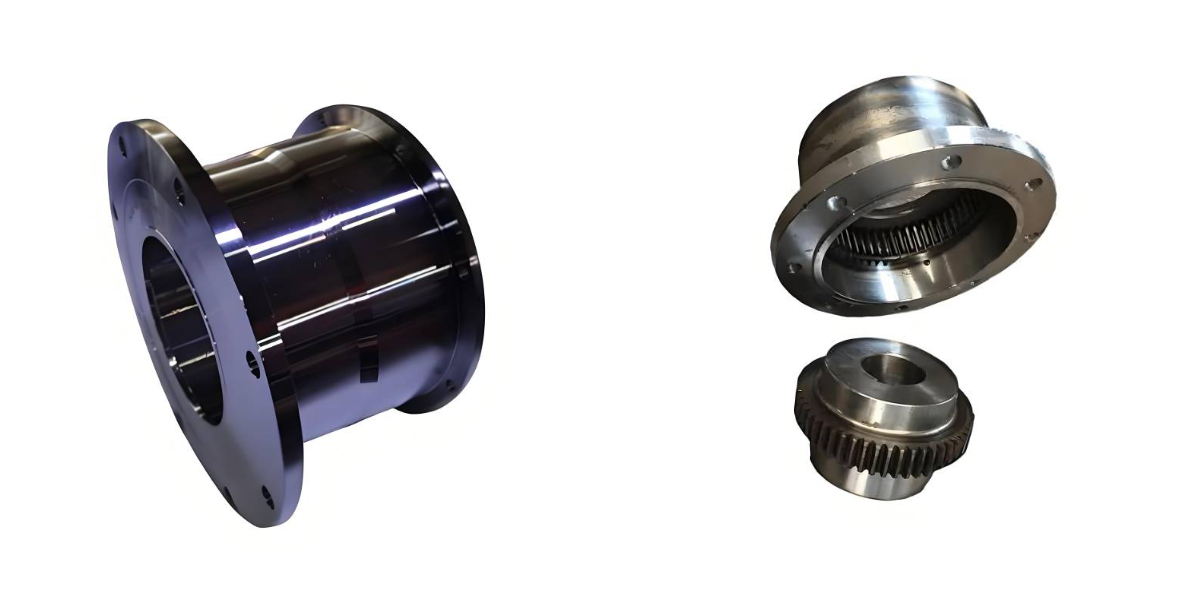

The classification of railway coupling types is based on transmission requirements and structural design. Among them, screw coupling in railway (railway screw coupling) is a relatively common one. It realizes the fixation of shafts to shafts through threaded connection and uses gaskets to compensate for a small deviation at the same time It is suitable for transmission systems with relatively small torque and low rotational speed. In addition, there are also types such as elastic couplings (which buffer vibrations through elastic elements like rubber and springs) and gear couplings (which transmit large torques through gear meshing and are suitable for heavy-duty locomotives). Different types of railway coupling correspond to different locomotive powers and operating speeds, which is the key basis for the selection of railway transmission systems.
Iv. Key Scenario Comparison: The Practical Application Differences between coupler and coupling
In the actual scenarios of railway operation, the application differences between coupler in railway and railway coupling can be intuitively reflected through specific scenarios.
In the train formation scenario, the shunting machine connects different carriages into a complete train by controlling the opening and closing of the railroad car coupler - for example, when a freight station combines coal carriages and container carriages into a freight train, it relies on the rapid connection function of the coupler in railway. In the train operation scenario, the power generated by the locomotive engine is transmitted to the transmission system through railway coupling, and then drives the wheel set to rotate. At this time, railway coupling needs to continuously and stably transmit torque, and at the same time buffer the vibration caused by the unevenness of the track to ensure the train moves at a constant speed.
If the coupler in railway malfunctions (such as the failure of the locking mechanism), it may cause the carriages to decouple and lead to a train separation accident. If the railway coupling is damaged (such as gear wear, elastic element rupture), it will cause the interruption of power transmission and lead to the suspension of train operation. Although the faults of the two have different impacts, they are both directly related to the safety of railway transportation. Therefore, targeted inspections are needed in daily operation and maintenance.
V. Summary: Clarify differences to ensure the safe operation of railway equipment
To sum up, the core difference between "coupler" and "coupling" lies in their functional positioning - coupler focuses on "component connection and separation", and in the railway field, it is manifested as coupler in railway (railway coupler), undertaking the task of carriage formation; coupling focuses on "power transmission and deviation compensation", and in the railway field, it is manifested as railway coupling (railway coupling), which supports the operation of the transmission system.
Understanding the differences between the two not only helps to avoid confusion of terms but also is of great significance for the selection, maintenance and troubleshooting of railway equipment. Whether it is choosing the appropriate train coupler types to adapt to different carriages, or selecting the corresponding railway coupling types based on locomotive power, or formulating a special maintenance plan for screw coupling in railway, All of them must be based on clarifying the differences between the two. in the future, with the development of railway technology, railway coupling and coupler in railway will be upgraded towards greater efficiency and durability. However, the core functional differences between the two will still be the basis for technical communication and equipment management in the railway industry.
